MASTERLOX H1609

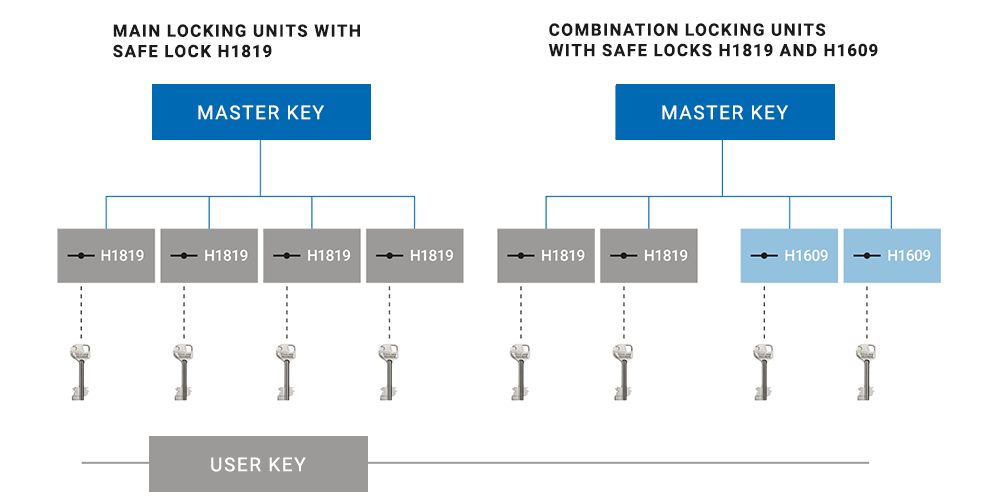

The MASTERLOX H1609 has a modular design and can be extended using a modular system of mounting covers, bascules and guide loops. It is often used in combination with the H1819, as both MASTERLOX locks can be ordered with the same main lock. The H1609 is ideal for large compartments due to its bascule, while the H1819 is the best solution for standard compartments. For example, long and short guns can be locked in a gun system according to their size.

Lock
Lock installation in door
With mounting cover for screwing or welding on
Fastening Lock
4 screw-on points
Lock
Right
Lock bolt
Wide block bolt, galvanized steel
Lock case
Prepared for latching base for 3-sided closure
Tamper protection
Scanning and breakdown protection
Locking devices
9
Key labeling
System number / compartment number
Mounting ceilings

A mounting cover is essential to ensure a consistent stop dimension and precise fixing of the lock in the cabinet. The mounting covers are made of chromated steel.

Mounting ceiling M1


- For screwing on
- Countersunk fixing screw heads

Mounting ceiling M2


- For screwing on
- Countersinks the heads of the fastening screws
- Key guide sets visual accent

Mounting ceiling M3


- For welding on
-Lock is screwed to the welded-on ceiling

Item number Article description Lock Key
Material / length / quantity
Key
Labeling
PU
H1609-01-0-0-T056-2
Lock incl. user key
Right
Tombac / 56 mm / 2
System number
10
H1609-02-0-0-T056-2
Lock incl. user key
Right
Tombac / 56 mm / 2
System and compartment number
10
SH-M072-10
Master key
Brass / 72 mm / 2
System number
1
Z-017
Mounting ceiling M1 for screwing on
10
Z-018
Mounting cover M2 with key guide for screwing on
10
Z-019
Mounting cover M3 for welding on
10
Z-020
Bascule (2-piece)
10
Z-030
Guide loop for bascule
10

Technical drawing

Other products in the series

Field of application

Main locking systems up to a maximum of 1,500 compartments

Systems with large doors, e.g. for long guns
